Steady-State Simulation Analysis🔗

Scatter plots are used to analyze steady state simulations.

Scatter plot functionality allows the user to visualize multiple cases in one chart and isolate the results of one variable in relation to another.

  1. Run the experiment in Steady State.

  2. Expand the details panel to the right.

  3. Go to the CALCULATED VALUES tab at the bottom right.

  4. Drag variables from CALCULATED VALUES to show variable results from the experiment.

  5. Drag and drop a new variable to an existing scatterplot (on the x-axis) and both values will be presented in one graph.

  6. Click on various points to see the results of variables in relation to other variables as results of the experiment.

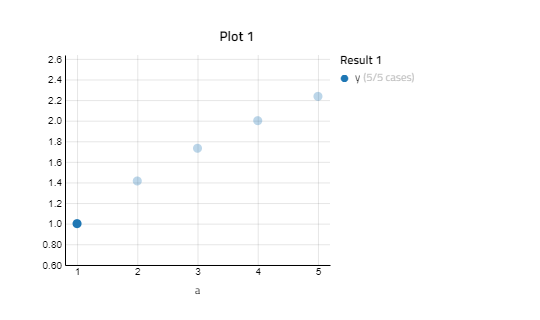

Scatter plot
