Tutorial: Excel Add-In as a User Interface for Deployment๐Ÿ”—

โ€‹

Introductionโ€‹๐Ÿ”—

The following tutorial explains how to use the Excel Add-In as a user interface. It shows how to establish a workflow between pro users who prepare and share a simulation and deployment users who do not touch the simulation environment of Modelon Impact at all, but instead only use the Excel interface to run simulations and evaluate results.

Preparations for the Tutorial๐Ÿ”—

Before you begin, make sure you have the Modelon Impact Add-In for Excel installed.

If you are not familiar yet with the Excel Add-In, please refer to the following article Excel Add-In getting started.

The Pro user sets up a workspace which contains a simulation model that is to be investigated and shares the workspace with the deployment users. Support how to do this is provided in the following articles: How to configure a workspace, How to share a workspace. Make sure the results of the baseline simulation are included. Download the Excel template and prepare it with the required modifiers and outputs such that the deployment users can investigate and modify the simulation as needed (more details on settings). Share the prepared Excel template with your colleagues but make sure the analysis settings are empty!

Instruction๐Ÿ”—

The following steps will guide you how to use the Excel Add-In as a user interface for deployment users.

Step 1๐Ÿ”—

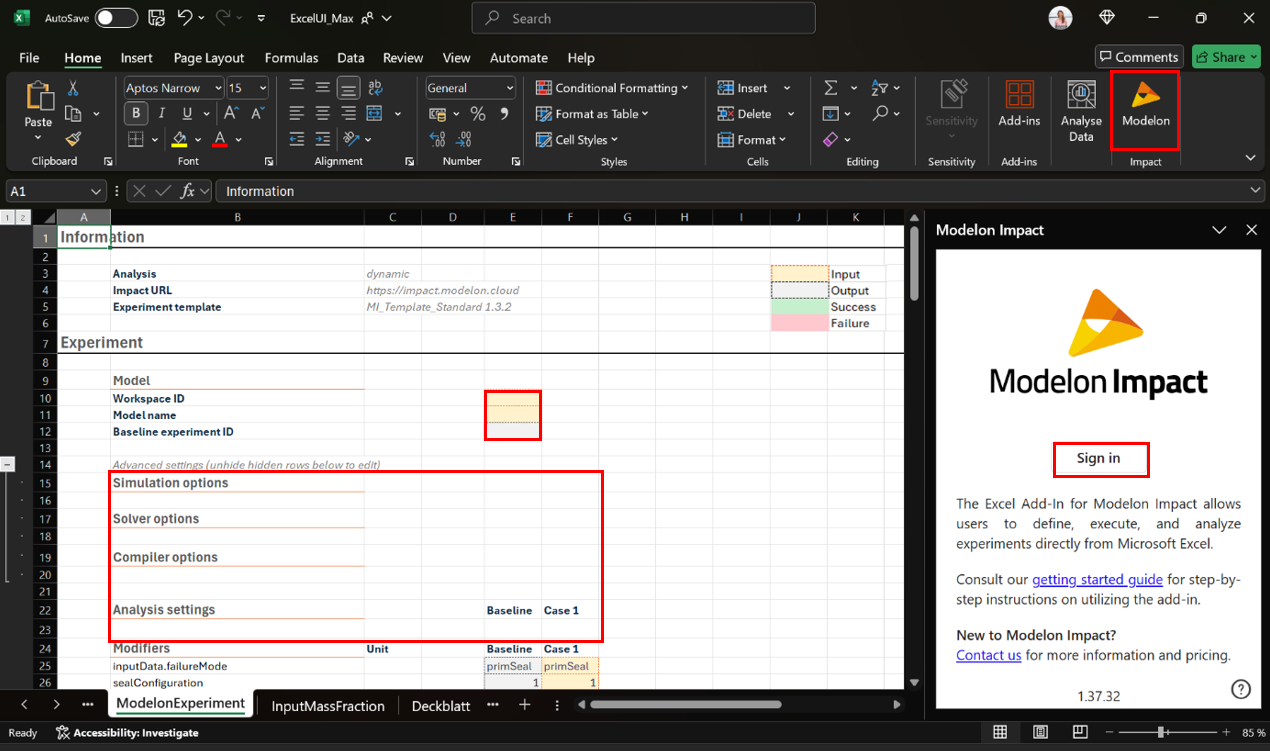

Open the preconfigured template you received from the pro user and launch the Modelon Excel Add-In. Check if the analysis settings are empty.

image info

Step 2โ€‹๐Ÿ”—

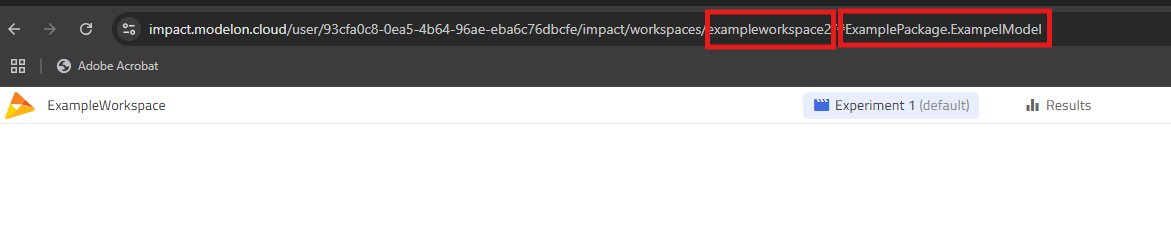

Click the link to the shared workspace you got from the pro user and take the workspace ID and model name from the link in your browser. image info

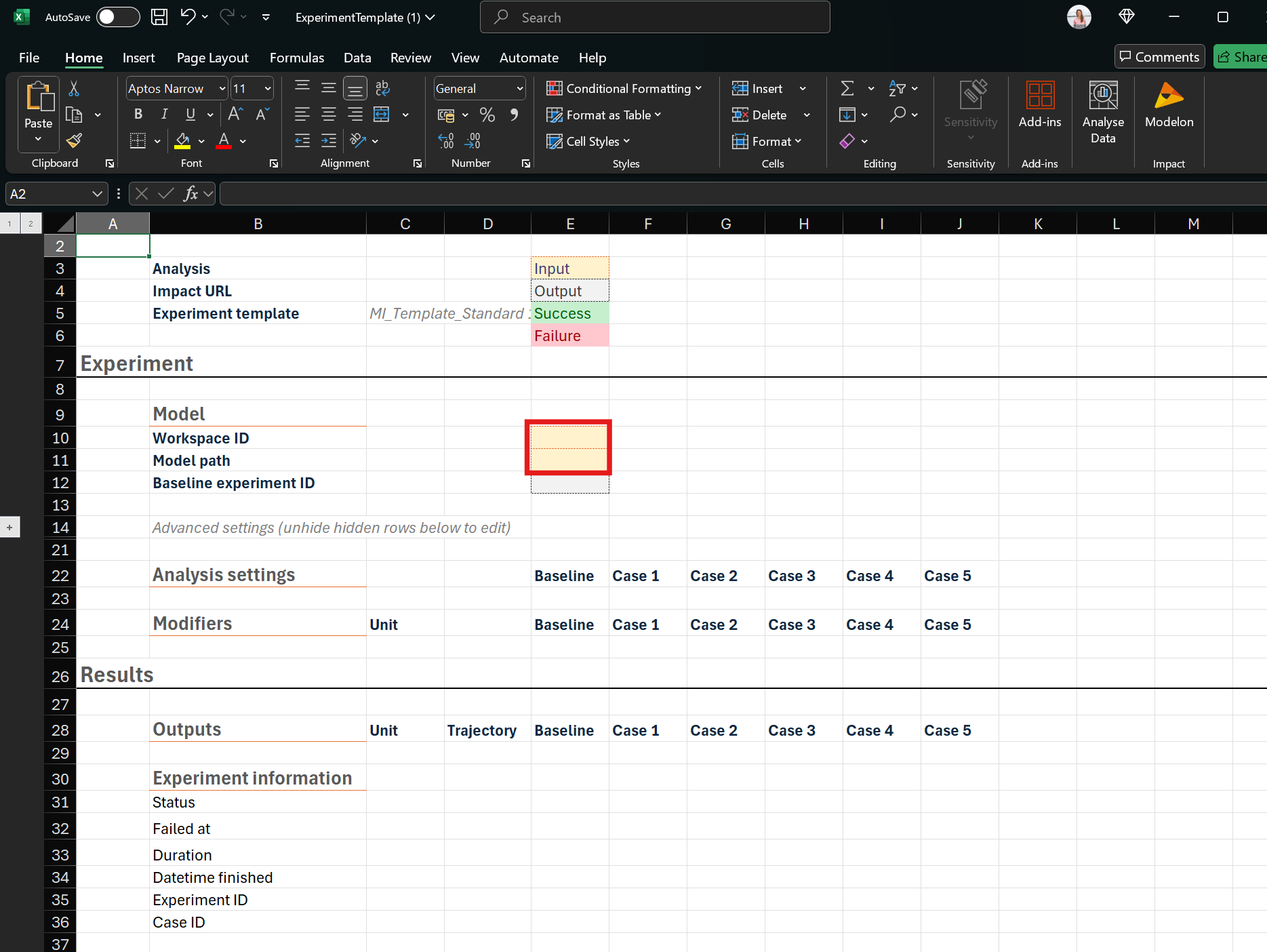

Enter workspace ID and model name in the Excel template. image info

Step 3๐Ÿ”—

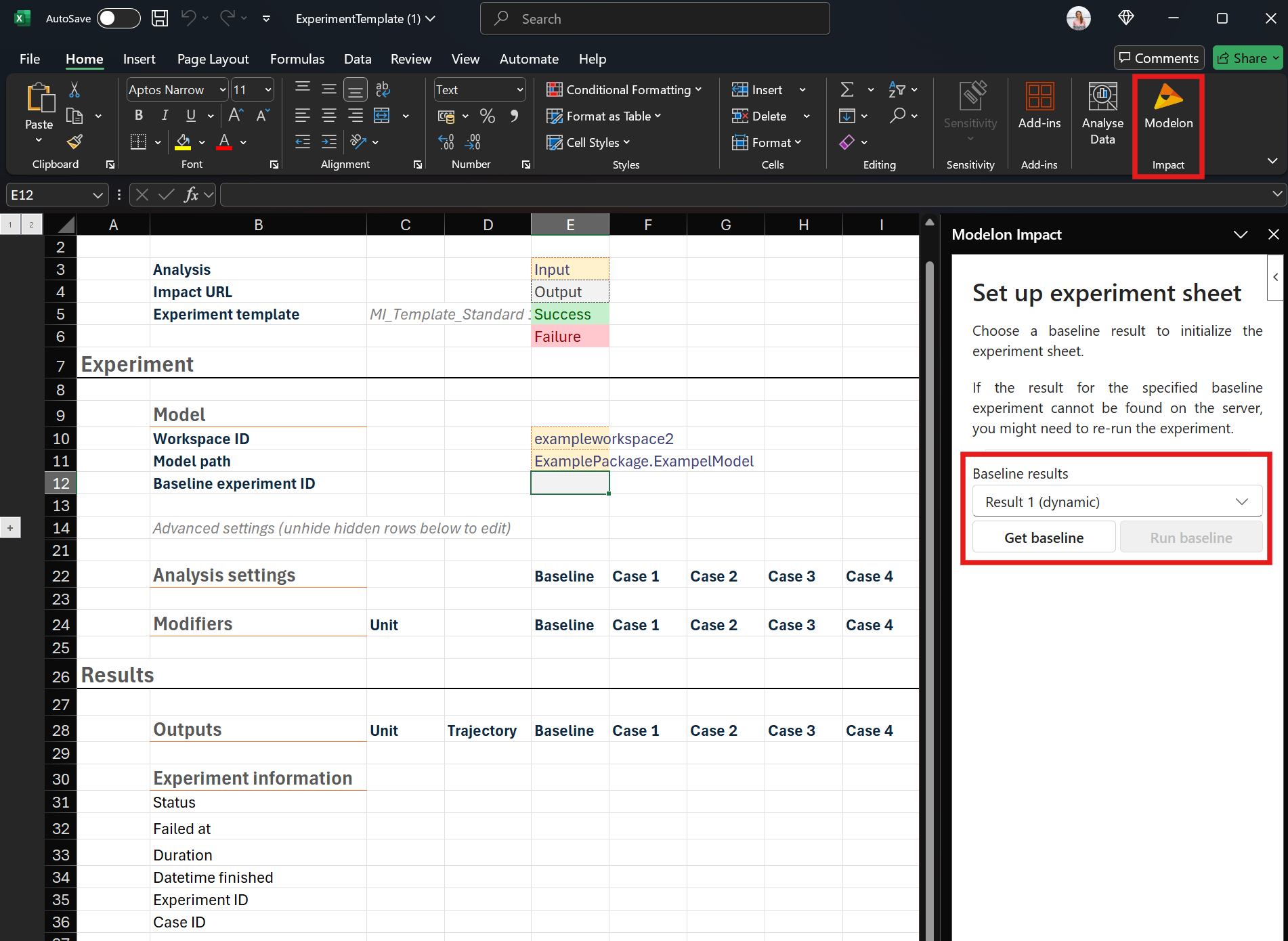

Choose your baseline result and click get baseline image info

Step 4๐Ÿ”—

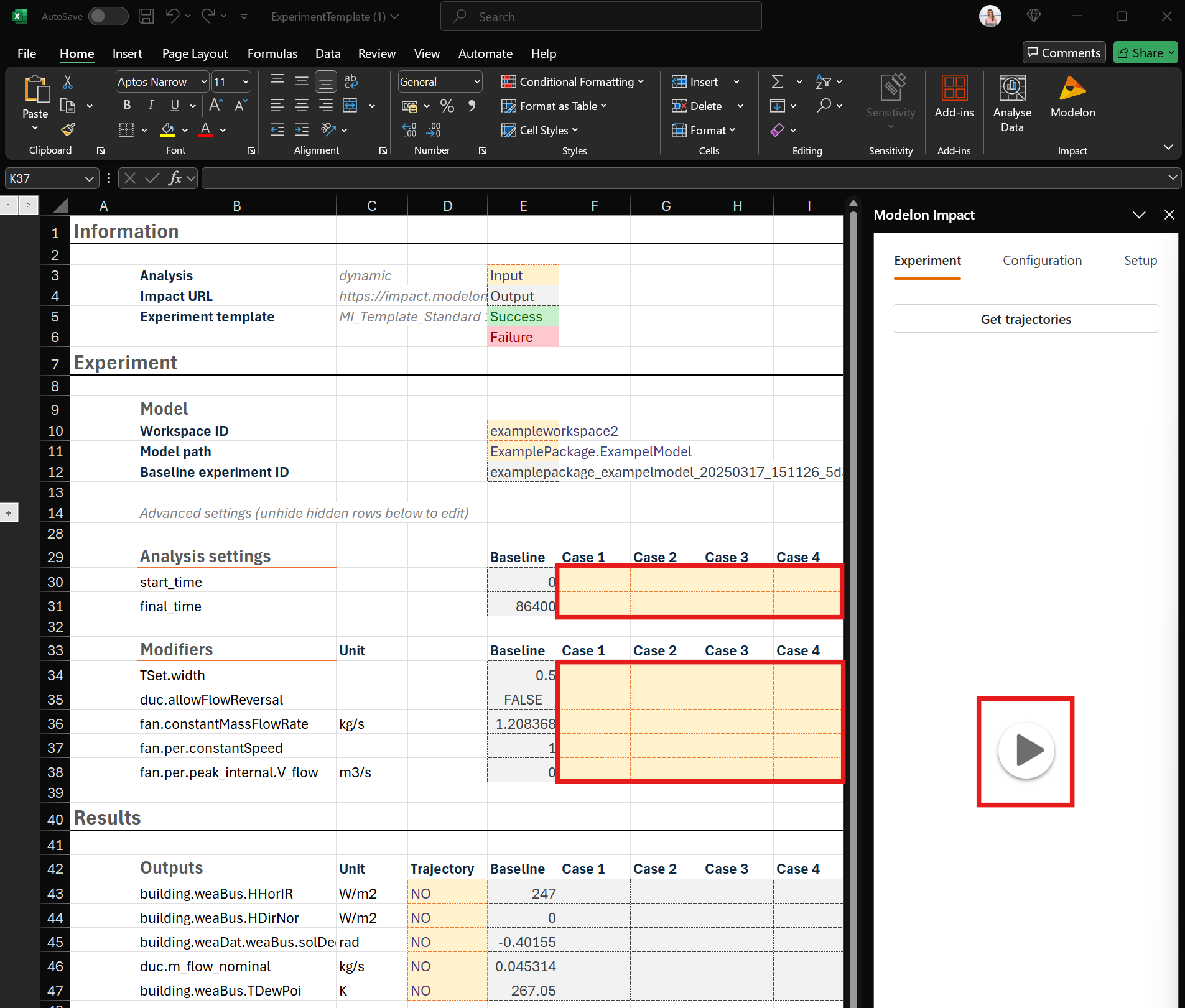

Enter your values for the modifiers and eventually add more outputs for investigation if needed. Set your simulation time and start your case image info

Step 5๐Ÿ”—

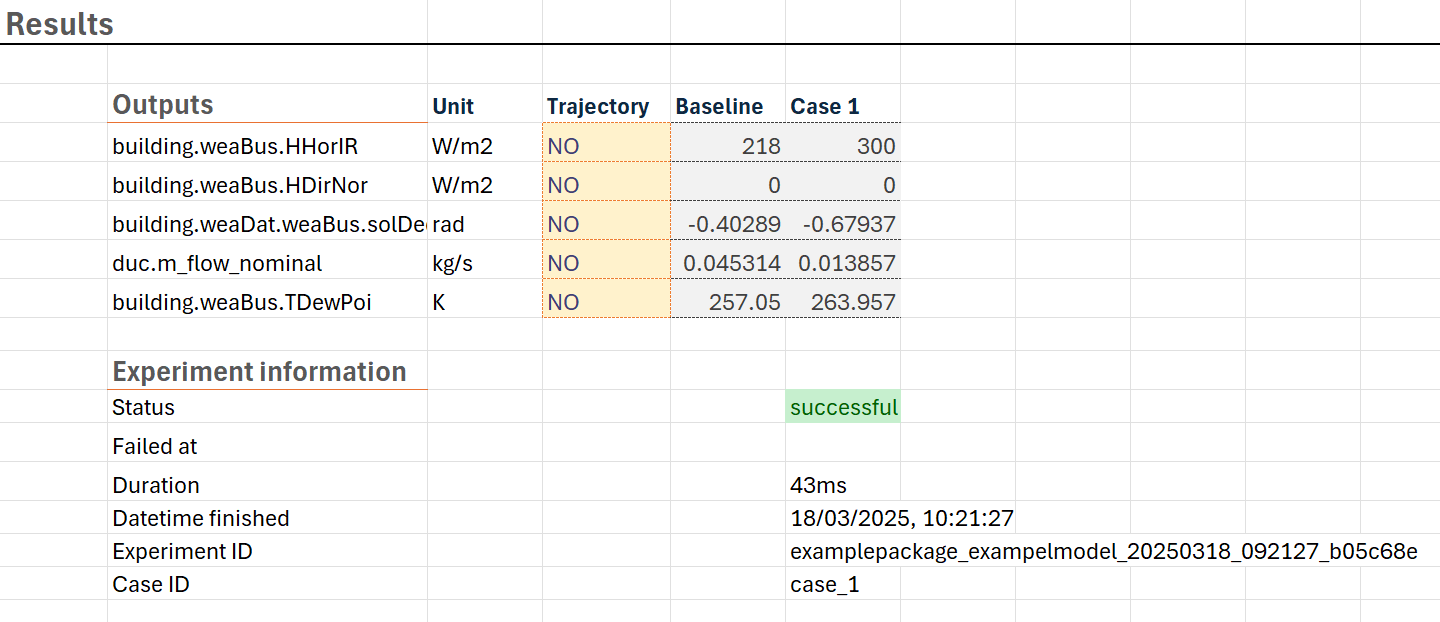

After the simulation is done, review the output carefully. image info
