Explicit External With Visualization🔗
This experiment is very similar to the example model SimpleTank except for the fact that complex tank with heat transfer has been used instead of simple tank with heat transfer.
Read more
Since the complex tank is bigger in size with more fuel compared to the other example model, the heat transfer effects are sligthly different in magnitude but overall they follow the trend seen in RockingTankHeatTransfer.

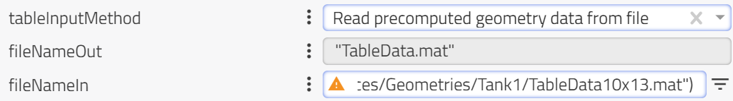

In this example model, tables values are already pre-computed and has been saved into file. The table values are read from the "TableData10x13.mat" file as shown in figure below.
